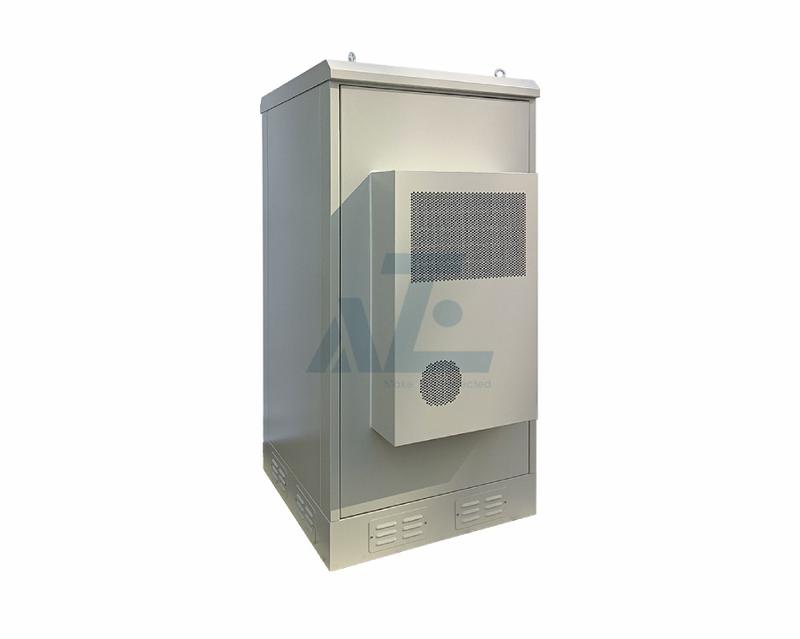

AZE's HVAC outdoor telecom enclosures and cabinets are designed specifically to protect high density installations of network equipment in outdoor environments and are ideal for wireless, wireline, and utility and applications.

Outdoor Enclosures are made of either durable galvanealed or cold-rolled steel and are painted with an outdoor, powder-coated finish, they are designed and manufactured to provide a degree of protection against rain, sleet, snow, ice, dirt and dust.

A telecommunication enclosure is a protective cabinet or box designed to house and safeguard telecommunications equipment such as routers, switches, and cabling systems. These outdoor telecom enclosures provide physical security, protect against environmental hazards like dust and moisture, and often include cable management and temperature control features. They can be installed in various settings, including outdoor environments, to ensure the reliable operation of telecommunications networks.

Looking for the ideal outdoor enclosures for your telecommunications equipment? Apparently, you need to consider several things, including the ability to withstand elements like high temperature, moisture, shock hazards, ice, and even UV damage. Also, add to your checklist about getting a custom project enclosure that can manage airflow and have cooling technology. Fortunately, AZE company can meet your requirements.

With the strong push to roll out LTE, 5G, C band and/or edge servers, large numbers of new macro cells are being built. Cell site equipment has gotten smaller and more efficient over the years, and movement towards CRAN architecture further reduces the footprint. Our floor or pad mount climated controlled outdoor equipment cabinets are ideally suited for Macro Cell Site and Centralized Radio Access Network (CRAN) applications.  AZE has developed a line of solutions to assist these deployments with rugged and compact enclosures for today's dynamic cell site needs. Various thermal options are available to ensure your equipment is protected and your site is reliable, including heat exchangers and air conditioners.

• IP55,IP65 or NEMA 4, NEMA 4X
• 16U,18U,22U,24U,27U,32U,42U or other customize sizes available
• 19" or 23" adjustable rack
• Constructed of durable, welded galvanized steel(Aluminum,stainless steel,color coated steel optional)
• Cabinet Air Conditioner (Heat Exchanger/Thermoelectric Cooler(TEC) Optional),wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs
• Offers a wide range of configuration options providing maximum flexibility including optional integrated power plants, protection, site monitoring, and fiber patch panels
• Various accessories available including plinths, top hat cable entry compartments, laptop tray kits and sliding rack trays
• Front and rear access doors allow technicians access to equipment storage areas and cable routing, well organized cable management and routing makes for easy installation
• Includes bolt-mounted lifting ears for placement by crane or other lifting equipment
• Enclosures and thermal systems have a powder coated finish to withstand the elements and provide superior environmental protection

AZE offers a variety of outdoor enclosures for telecommunications equipment. If one of our standard products doesn't quite meet your application requirements, we can modify the design to create the ideal outdoor product for your needs. We can also collaborate with you and your team to create new products built to your specifications. Before you purchase any telecommunications cabinet, consider the following:

NEMA Ratings for Outdoor Telecom Enclosures

Finding outdoor enclosures that meet all of your application requirements is made simpler through NEMA ratings. Cabinets with a 3, 3R, 4, 4X NEMA standard are all properly made to withstand the outdoor elements to varying degrees. The key is to select the enclosure rating that best meets your environmental needs, and then find an appropriate enclosure with that rating. AZE manufactures metal cabinets and enclosures that meet or are designed to NEMA type 3R, 4.

• Weather Resistance: Your enclosure must withstand diverse weather conditions – from intense sun and rain to snow and wind. This ensures long-term protection of the sensitive equipment inside.
• Cooling Systems: Given the heat generated by telecom equipment and potential external temperatures, integrated cooling systems are crucial. They prevent overheating, which can harm your equipment's performance and lifespan

Outdoor Telecom Enclosures' External Features

Also, keep in mind that if you are going to connect external features, such as a cable or antenna, it may be necessary to modify your enclosure for the outdoors. Every cutout you add to the cabinet provides an opportunity for water or other contaminants to seep in. Using the right accessories, such as cable glands, can help seal out dust, dirt, and damaging liquids.

• Security: Robust locks and tamper-proof designs are essential to safeguard against vandalism or unauthorized access. This security is vital for protecting the physical equipment and the data and services it supports.
• Accessibility: While security is critical, the enclosure should also allow easy access for authorized personnel. This facilitates regular maintenance, upgrades, and quick repairs, ensuring minimal downtime.
• When selecting the size, consider the current equipment and potential future additions. Ensure there's enough room for all components and additional space for wiring and air circulation. A slightly larger enclosure might be a wise choice for future-proofing your setup.

These features collectively ensure that your outdoor telecommunications enclosure is a reliable guardian for your equipment, balancing protection with functionality.

Outdoor Environmental Factors

Additionally, to ensure the performance and reliability of your equipment and to give it the best chance at a long lifespan, you must consider outdoor environmental factors. These factors include variations in the internal operating temperature with temperature extremes, water, and dust ingress at cabling connections. Other dynamic factors include moisture, condensation, chemicals, and corrosive gases that can affect internal component and material selection. Don't forget about the panel layout and design and the need for environmental conditioning (cooling and heating).

Climate Control for Outdoor Telecom Enclosures

For electronics to survive in an outdoor enclosure, they typically require climate control.Whether you're keeping your electronic systems and components cool in the summer or warm in the winter, outfitting your outdoor enclosures with the appropriate heating and cooling features will help protect your investment. Look through our products to learn more about your heating and cooling options.

Custom Your Outdoor Electrical Telecom Enclosures with AZE, our weatherproof solution for your electronics system have features:

• Custom IP55 or other IP rating Enclosure

• IP55/IP65 Certification from 3rd party testing lab.

• Cold Rolled steel, 201 stainless steel, 304 stainless steel, 316 stainless steel as well as galvanized steel, which will suit your various requirements and budgets.These quality materials can protect the equipment against harsh weather conditions like rain, wind and sand storms.

Does your enclosure need a cooling system? What about corrosion resistance or a water- and dust-tight seal? Determining which features are necessary will help you select the proper enclosure and material to protect your equipment against the elements, our team will work with you to select or design an outdoor electronics enclosure that meets your unique application's requirements.

Installation is important in extending the life of the enclosures. Those of our enclosures which carry a NEMA 4 rating have exterior mounting brackets, but have no other holes in order to maintain that NEMA outdoor enclosures rating. Any other holes an installer makes for power, etc. must be made with proper tools, deburred and water-tight fittings used. We also recommend coating the interior of the cut (the newly exposed metal) with Rust-Seal or another type of protection.

Depending on the outdoor box you choose, features include: drip shields, water channels, gaskets, with or without knockouts, hinged doors, removable doors, screw covers, external or internal mounting holes, removable back panels, 1/4-turn latches, and tubular cam locks.

Outdoor cabinet with air conditioning was developed for easing customers' pressure in site acquisition, meeting customers' requirements for energy saving and flexible expansion.

As an innovative installation solution for site equipment, it not only has a large housing capability like traditional shelter but also adopts independent compartment temperature control methods such as outdoor cabinets.

Protective NEMA Rated Outdoor Telecom Enclosures

AZE company carries outdoor enclosures for your telecom and industry needs. From 16" to 90" heights, from 25" to 42" of depth, we can help size the right enclosure for your site. Our selection include NEMA 4 and 4x rated cabinets along with air conditioning or heating based on your environment.

Because outdoor cabinet has few limitations on application scenarios and can satisfy customers' different requirements, it is gaining more and more popularity in the modern site.Dirty gases such as high temperature and dust outside the cabinet will not enter the inside of the cabinet, which effectively solves a series of problems caused by fan heat dissipation.The inside of the cabinet can always maintain an ideal temperature environment of about 30°C, which effectively guarantees the stability of electronic equipment.

• Fast Deployment, ROI Improvement
• Supporting installation in the factory and transportation as a whole.
• Support on-site assembly of components.
• OEM, ODM or customization supported
• 100% quality inspection of each industrial enclosure air conditioner
• Simple and compact structure
• Small footprint
• Low manufacturing cost and stable operation
• It is suitable for miniaturized outdoor communication, transmission and aggregation base stations.

AZE offer a comprehensive range of outdoor enclosures for virtually any installation. The outdoor enclosures have a similar yet flexible design layout, installation is fast, with configuration changes easily made when a network demands change. Our outdoor telecom enclosures features:

• Racking for 19" and 23" Equipment
• Integrated Air Conditioning
• Integrated Heating
• Integrated Fans
• Integrated Battery Systems
• Integrated DC Power Systems

The outdoor telecom cabinet enclosure with air conditioner realizes heat absorption and cooling through compression refrigeration, and transfers the heat emitted by the equipment in the cabinet to the outside of the cabinet in a closed environment of the cabinet. Our outdoor Telecom Enclosures are widely used in the area of:

• Traffic Boxes
• LTE-4G-OSP
• Climate Control
• Pole and Wall Boxes
• Remote Sites
• Mobile Towers
• Solar and Wind
• Oil Field Enclosures
• Trailer Mounted
• Fireboxes
• Roof Mounted

AZE company offers wide Range Selections of Custom Outdoor Telecommunication Boxes

• Outdoor Enclosure Dimension  When it comes to custom manufacturing, we can rest assurance that choosing custom made boxes is highly beneficial compared to the ready made standard enclosures. What we do here in AZE company is we ensure your output is reflected in the end product. In addition, we make sure that the dimensions of your custom electrical enclosures fit well with your equipment.
• Outdoor Enclosure Function   The function of our custom outdoor telecom, electrical enclosure design satisfies our customers because we not only provide usual housing for the electrical equipment. We also offer special features like shock and vibration proofing, durability, weatherproofing, thermal management, flame resistance and fire retardant, as well as a one-box-fits-all solution.
• Outdoor Enclosure Compatibility  We guarantee enclosure compatibility based on your critical application needs. For instance, we offer shock and vibration proofing, weatherproofing, durability, and climate control features to answer the protection needs of your telecommunication equipment.
• Outdoor Enclosure Application  Our custom electrical enclosures are widely used in residential, commercial, and industrial applications. Also, our custom electronic enclosures are versatile as they can be used to factory surroundings, shipping facilities, construction areas, warehouses, and processing plants.

• Enclosure Rack Space (RU)    It is essential to know the suitable rack space for your equipment. You need to identify if you need to have a tight close space for the equipment or provide more space for optimal airway. Disregarding this factor can affect your equipment's performance.
• Enclosure Width     Providing the right width measurement can greatly benefit your system's operation. This means you will not have an issue if the equipment and the custom electrical box eat too much horizontal space.
• Enclosure Depth    Indicating the correct depth measurement is also a must in the custom making of your enclosure design. It will defeat the essence of custom manufacturing if the machine to be housed does not fit well in the electrical box.
• Enclosure Colors     This is a fun selection because you get to choose the color coating for your custom electrical boxes. Whatever color you choose can interject an impression to your telecommunication equipment.
• Door Designs     There are many ways to conceal and cover your electrical equipment. You can opt for a sliding door, two-way door opening, or one-way door protection with a mini firefighter fire extinguisher to use in a fire emergency.
• Lockable Options    AZE company's range of custom enclosures is supplied with locks and keys. You can opt for different locks, such as waterproof long handle lock, turnbuckle chromed steel, and stainless steel.
• Climated control options   AZE company supplies air conditioner, heat exchangers or TEC for your cooling options.
