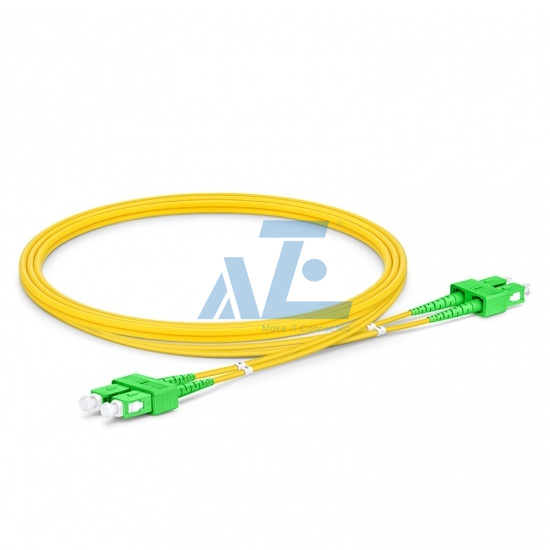

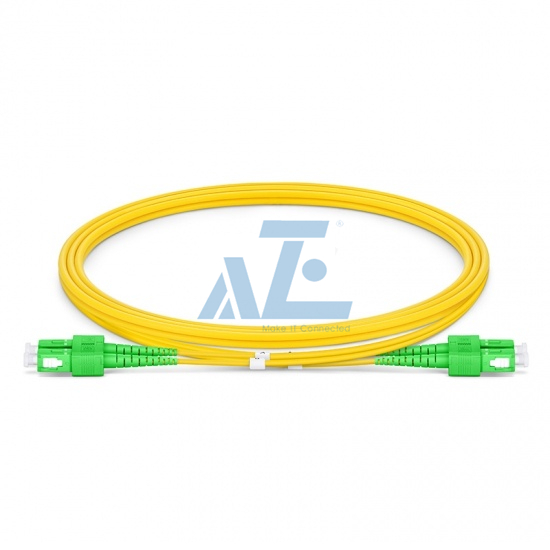

SC APC to SC APC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
Model:SM-SCA-SCA-DX-xxM-PVC
AZE's 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
- SC APC to SC APC
-
Conforms to ISO/ IEC 11801
-
Individually labelled for lead tracing
-
Manufactured with strictly quality control
-
Fibre Optic Cables conform to ITU-651, TIA/EIA492
-
Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
-
All ends are polished and individually inspected for correct polishing
-
Supports high-speed multi-channel data, voice & video applications
Overview
AZE's OS1 / OS2 singlemode fibre optic patch leads provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. AZE's fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The singlemode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards. The big difference between APC and UPC connectors is the fibre connector endface. APC connectors feature a fibre connector endface that is polished at an 8-degree angle, while UPC connectors are polished with no angle.
- Meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
- Cable printed helps clarify and recognize different cables.
- Zirconia Ceramic Ferrule Optimum IL and RL.
- Bend insensitive fiber cable shows a great performance on resilience.
Specification
| Connector Type | SC to SC | Polish Type | APC to APC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Fiber Grade | G.657.A1(Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~80°C | Storage Temperature | -40~80°C |
Note:
-
Jack materials: PVC(OFNR), OFNP, LSZH
-
Length Options: 0.5M-300M
-
Connector Style: SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
-
Polish or Ferrule Interface Type：PC, UPC, APC
-
Cable Diameter: 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
-
Jacket Color：Yellow
How to Order
Connector Technical Data
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
Beside the fiber patch cables, AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
