1U Rack Mount 8 Port 15.6" FHD LCD KVM Console
Model:RMCON1608W
AZE's rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 15.6 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
- Extra short depth 340mm
- Standard VGA connector (8 Port)
- Space savings with 1U 15.6-inch, rack-mount drawer design
- Features 15.6-inch LCD TFT active-matrix, color panel
- Supports resolutions of up to 1920*1080
- Included PS/2 to USB adapter allows for connection to a USB computer or KVM
- Sleep mode when the monitor cover is closed
- Input DC12V
- Constructed of heavy-duty steel housing
Overview
AZE's RMCON1608W is an ultra short depth rackmount LCD console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6" LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, with the short depth design - 360mm, it is fit for mounting in the small 600m rack. It also features a dual power supply redundancy, largely improve the work efficiency of the whole KVM and server system.
It is easy and fast to install the KVM console; you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. This console is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.

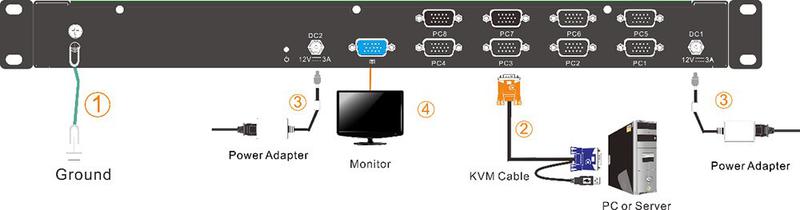

Connection Diagram
Hardware Features
- 15.6 FHD LCD display, 99-key keyboard, touchpad
- Constructed of heavy-duty steel in a 1U housing
- Short depth: 360mm
- Rack-mountable in 1U system rack
- Dual power supply
High Resolution
- 15.6" TFT LCD KVM with monitor supports highlight, high definition and high resolution
- Support input video resolutions up to 1920 x 1080 @60Hz
Management
- A single USB console controls up to 8 computers
- Dual interface – supports computers with PS/2 and USB keyboard and mouse
- Auto PS/2 and USB interface detection
- Two level password security – support 1 administrator user and up to 8 users, only administrator user can give user the right to access and view the server.
- Broadcast mode – operations simultaneously performed on all selected computers
- USB or PS/2 keyboard emulation – computer boot even the console focus is else where
- Convenient computer switching via front panel pushbuttons, hotkeys, on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computers
- Hot pluggable – add or remove computers without having to power down the switch
High Performance Touchpad
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Wide Compatibility
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
Specification
| KVM Type | |
| IP Control | No |
| Computer Connections | |
| Direct | 8 |
| Maximum | 8 |
| Port Selection | On-screen-display (OSD),Hotkey,Pushbutton |
| Emulation(Keyboard / Mouse) | PS/2,USB |
| Connectors | |
| KVM Ports | 8 |
| Power | DC12V |
| External Console Ports | 1 x SPHD Male (Blue) |
| Power | |
| Maximum Input Power Rating | DC12V/2A |
| Power Consumption (In Watts) | 10W |
| LCD Monitor | |
| LCD Module | FHD TFT |
| Display Size | 15.6" |
| Resolutions | 1920×1080@60Hz |
| Display Color | 16.2 M |
| Contrast Ratio | 800 : 1 (Typ) |
| Luminance | 250cd/m²(Typ) |
| Pixel Pitch Support(mm) | 0.17925(H) × 0.17925(W) |
| Keyboard | |
| Keyboard | 99 keys(82 keys main keyboard +17 independent small numeric keyboard) |
| Mouse | |
| X/Y resolution | >1000 points / inch,(40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function(Eliminates the need for a separate, external mouse) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10 ~ 80% RH |
| Physical | |
| Color | Black |
| Housing | Metal |
| Rail Type | Single Rail |
| Unit Dimensions (WxDxH) | 17.64inches x 14.17inches x 1.67inches /448mm x 360mm x 42.5mm |
| Unit Weight | 19.84lbs./9 Kgs |
| Shipping Dimensions(WxDxH) | 23.62inches x 21.18inches x 6.3inches /615mm x 538mm x 160mm |
| Shipping Weight | 30.86lbs./14 Kgs |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | LCD Monitor Size | Number of Computers | Computer Interface | Resolution | Description | Application |
| RMCON1701 | 17" | 1 | VGA | 1280x1024 | 1U Single Port 17" Single Rail LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708 | 17" | 8 | VGA | 1280x1024 | 1U Rackmount 8 Port KVM Console for Server Rack-17inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1716 | 17" | 16 | VGA | 1280x1024 | 1U Rackmount 16 Port KVM Console for Server Rack-17inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1901 | 19" | 1 | VGA | 1280x1024 | 1U Single Port 19" Single Rail LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1908 | 19" | 8 | VGA | 1280x1024 | 1U Rackmount 8 Port KVM Console for Server Rack-19inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1916 | 19" | 16 | VGA | 1280x1024 | 1U Rackmount 16 Port KVM Console for Server Rack-19inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1601W | 15.6" | 1 | VGA | 1920x1080 | 1U Single Rail 15.6" Widescreen LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1604W | 15.6" | 4 | VGA | 1920x1080 | 1U Single Rail 4 Port 15.6" FHD LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1608W | 15.6" | 8 | VGA | 1920x1080 | 1U Single Rail 8 Port 15.6" FHD LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1701W | 17.3" | 1 | VGA | 1920x1080 | 1U Rack Mount 17.3" FHD LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708W | 17.3" | 8 | VGA | 1920x1080 | 1U Rackmount 17.3" 8 Port FHD LCD KVM Console 1080P | Server Room,Data Center,Telecom,Traffic |
| RMCON1716W | 17.3" | 16 | VGA | 1920x1080 | 1U Rackmount 17.3" 16 Port FHD LCD KVM Console 1080P | Server Room,Data Center,Telecom,Traffic |
| RMCON1801W | 18.5" | 1 | VGA | 1920x1080 | 1U Rack Mount 18.5" FHD LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1808W | 18.5" | 8 | VGA | 1920x1080 | 1U 8 Port 18.5" Widescreen LCD KVM Switch | Server Room,Data Center,Telecom,Traffic |
| RMCON1816W | 18.5" | 16 | VGA | 1920x1080 | 1U 16 Port 18.5" Widescreen LCD KVM Switch | Server Room,Data Center,Telecom,Traffic |
| RMCON1801VDHP | 18.5" | 1 | VGA/HDMI/DVI/HP | 1920x1080 | 1U Rackmount 18.5" Widescreen LCD Console(VGA/HDMI/DVI/HP) | Server Room,Data Center,Telecom,Traffic |
-
Shipping Option: Assembly unit
-
LCD KVM Console or KVM over IP Switches available
-
A wide range of KVM Switch accessories compatablity
-
Besides KVM Switches, Server rack enclosure , Colocation server cabinet, Server Rack PDUs and Outdoor Enclosures available.
