17.3" FHD 1U Rack LCD Console
Model:RMCON1701W
AZE's rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 17.3 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
- Standard VGA connector (1 Port)
- Space savings with 1U 17.3-inch, rack-mount drawer design
- Features 17.3-inch LCD TFT active-matrix, color panel
- Supports resolutions of up to 1920*1080
- Included PS/2 to USB adapter allows for connection to a USB computer or KVM
- Sleep mode when the monitor cover is closed
- Input 100-240 VAC
- Constructed of heavy-duty steel housing
Overview
AZE's RMCON1701W is a rack mount LCD KVM Console that features an integrated 17.3" LCD monitor, full 99-key keyboard and touchpad in a 1U compact housing. The included cable allows for connection to a USB/PS2 computer or KVM. Features a 17.3-inch LCD TFT panel, the LCD KVM supports resolutions of up to 1280x1024@60Hz.
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.

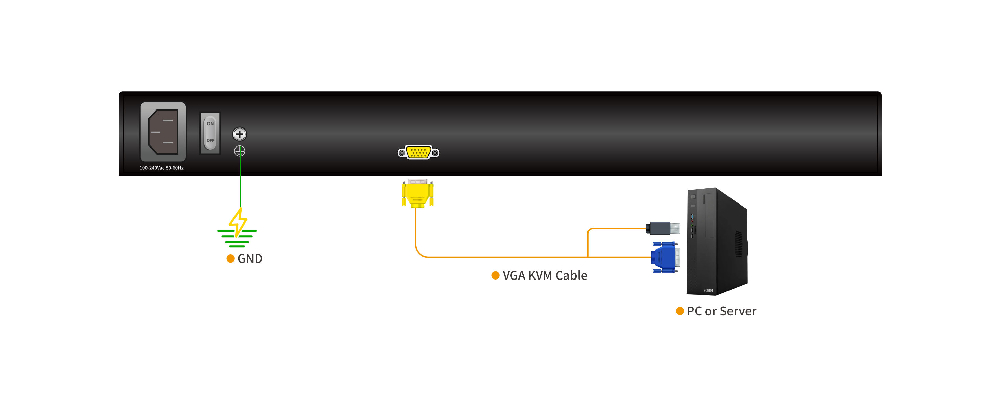

Connection Diagram
Hardware Features
- Integrated KVM Console with 17.3" LCD monitor, keyboard/touchpad
- Standard VGA connection-Connect to a server or computer via standard VGA connector
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support computers with USB and PS/2 port
- Internal power supply
High Resolution
- 17.3" TFT LCD KVM with monitor supports highlight, high definition and high resolution
- Support input video resolutions up to 1280 x 1024 @60Hz
High Performance Touchpad
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Wide Compatibility
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
Specification
| KVM Type | |
| IP Control | No |
| Computer Connections | |
| Direct | 1 |
| Maximum | 1 |
| Port Selection | On-screen-display (OSD),Hotkey,Pushbutton |
| Emulation(Keyboard / Mouse) | PS/2,USB |
| Connectors | |
| KVM Ports | 1 x SPHD Female(Yellow) |
| Power | 1 x IEC 60320/C14 |
| Power | |
| Maximum Input Power Rating | 100V~ 240Vac , 50~60Hz; <1.5A |
| Power Consumption (In Watts) | 11W |
| LCD Monitor | |
| LCD Module | FHD TFT |
| Display Size | 17.3" |
| Resolutions | 1920×1080@60Hz |
| Display Color | 262K |
| Contrast Ratio | 800 : 1 (Typ) |
| Luminance | 300cd/m²(Typ) |
| Pixel Pitch Support(mm) | 0.1989(H) × 0.1989(W) |
| Keyboard | |
| Keyboard | 99 keys(82 keys main keyboard +17 independent small numeric keyboard) |
| Mouse | |
| X/Y resolution | >1000 points / inch,(40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function(Eliminates the need for a separate, external mouse) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10 ~ 80% RH |
| Physical | |
| Color | Black |
| Housing | Metal |
| Rail Type | Single Rail |
| Unit Dimensions (WxDxH) | 17.64inches x 22.05inches x 1.67inches /448mm x 560mm x 42.5mm |
| Unit Weight | 23.14lbs./10.5 Kgs |
| Shipping Dimensions(WxDxH) | 24.21inches x 30.12inches x 7.28inches /615mm x 765mm x 185mm |
| Shipping Weight | 35.26lbs./16 Kgs |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | LCD Monitor Size | Number of Computers | Computer Interface | Resolution | Description | Application |
| RMCON1701 | 17" | 1 | VGA | 1280x1024 | 1U Single Port 17" Single Rail LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708 | 17" | 8 | VGA | 1280x1024 | 1U Rackmount 8 Port KVM Console for Server Rack-17inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1716 | 17" | 16 | VGA | 1280x1024 | 1U Rackmount 16 Port KVM Console for Server Rack-17inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1901 | 19" | 1 | VGA | 1280x1024 | 1U Single Port 19" Single Rail LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1908 | 19" | 8 | VGA | 1280x1024 | 1U Rackmount 8 Port KVM Console for Server Rack-19inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1916 | 19" | 16 | VGA | 1280x1024 | 1U Rackmount 16 Port KVM Console for Server Rack-19inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1601W | 15.6" | 1 | VGA | 1920x1080 | 1U Single Rail 15.6" Widescreen LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1604W | 15.6" | 4 | VGA | 1920x1080 | 1U Single Rail 4 Port 15.6" FHD LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1608W | 15.6" | 8 | VGA | 1920x1080 | 1U Single Rail 8 Port 15.6" FHD LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1701W | 17.3" | 1 | VGA | 1920x1080 | 1U Rack Mount 17.3" FHD LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708W | 17.3" | 8 | VGA | 1920x1080 | 1U Rackmount 17.3" 8 Port FHD LCD KVM Console 1080P | Server Room,Data Center,Telecom,Traffic |
| RMCON1716W | 17.3" | 16 | VGA | 1920x1080 | 1U Rackmount 17.3" 16 Port FHD LCD KVM Console 1080P | Server Room,Data Center,Telecom,Traffic |
| RMCON1801W | 18.5" | 1 | VGA | 1920x1080 | 1U Rack Mount 18.5" FHD LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1808W | 18.5" | 8 | VGA | 1920x1080 | 1U 8 Port 18.5" Widescreen LCD KVM Switch | Server Room,Data Center,Telecom,Traffic |
| RMCON1816W | 18.5" | 16 | VGA | 1920x1080 | 1U 16 Port 18.5" Widescreen LCD KVM Switch | Server Room,Data Center,Telecom,Traffic |
| RMCON1801VDHP | 18.5" | 1 | VGA/HDMI/DVI/HP | 1920x1080 | 1U Rackmount 18.5" Widescreen LCD Console(VGA/HDMI/DVI/HP) | Server Room,Data Center,Telecom,Traffic |
-
Shipping Option: Assembly unit
-
LCD KVM Console or KVM over IP Switches available
-
A wide range of KVM Switch accessories compatablity
-
Besides KVM Switches, Server rack enclosure , Colocation server cabinet, Server Rack PDUs and Outdoor Enclosures available.
